Integrated Active sub-woofer Power 150 WRMS
Integrated Stereo Satellite Amplifier Freq. Response 20Hz – 20kHz
Integrated Stereo Satellite Amplifier Power, per channel 119 WRMS @ 2Ω / 83 WRMS @ 4Ω
Remote control 0- 10 VDC, compatible with WpmVOL wall panel
sub-woofer LPF Crossover Filter Adjustable from 100 to 150Hz / 12dB oct
sub-woofer Maximum SPL (dB@1m) 112 dB
Dimensions 310 x 500 x 425 mm
Weight 13.55 kg
Others Auto standby function
Key Features
• 10″ powered sub-woofer integrated in the cabinet, 150 WRMS
• 2 x 150 WRMS stereo amplifier integrated in the cabinet, with Euroblock connectors for external speakers (“satellites”)
• Stereo audio input with RCA and Euroblock connectors
• Adjustable sub-woofer cutoff frequency: low-pass filter frequency between 100 and 150Hz
• sub-woofer phase switch
• MASTER VOL and SUB VOL level controls
• 0-10VDC ports for volume remote control, compatible with the WPmVOL wall panel
• ON / STANDBY, Signal Present, CLIP L and CLIP R indicators

• Recommended loudspeakers:
-AUDEO Series: allows up to 8 loudspeakers (4 per channel – global impedance = 2Ω)
-eAMBIT Series: allows up to 8 loudspeakers (4 per channel – global impedance = 2Ω)

• Retail shops
• Hotels, clubs, restaurants & bars
• Leisure, sport and health centres
• Multimedia presentations
• Museums and exhibitions
• Classrooms
• Meeting rooms
• Video-walls, screens, interactive
• AV marketing and digital signage



Plug & Play Audio Set
ECLER ESSENTIALS AUDEO SB10P21 is a kit that will allow everybody to carry out an easy installation of a real professional 2.1 audio system: a stereo sound with a sub-woofer reinforcement unit.

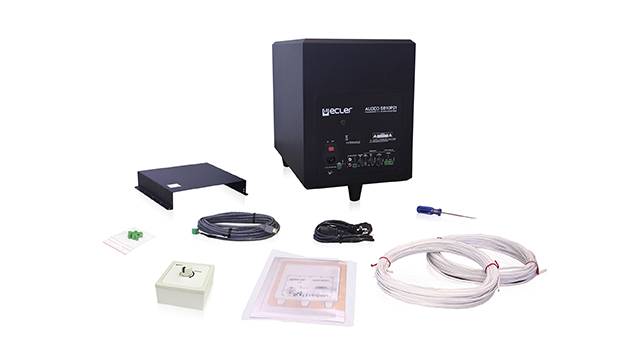

This kit contains:
• AUDEOSB10P21 loudspeaker cabinet: a self-powered 10″ sub-woofer unit combined with a built-in stereo amplifier that feeds satellite, full range loudspeakers
• Protection cover for connectors and local controls
• Wall panel control to adjust the set’s volume remotely
• Speaker wire reel (50 meters), wall panel cable, screwdriver
• Quick installation guide, with a step-by-step detailed procedure
